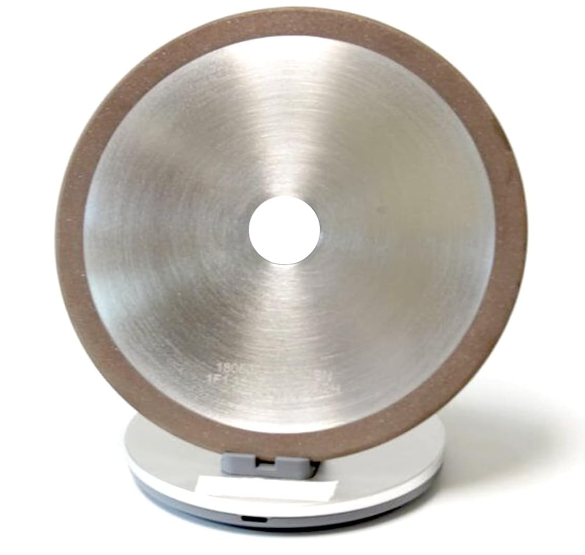

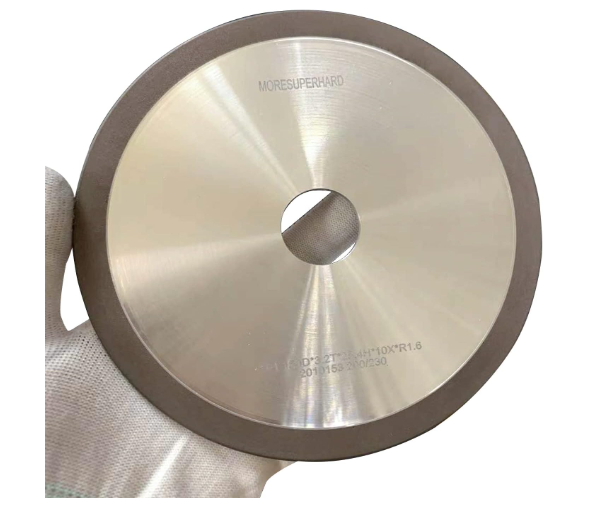

5‑3/4″ CBN Chainsaw Sharpening Wheel - Resin Bond

Long‑Life Resin CBN ChainSaw Sharpening Wheel

🛠️ Size of Resin bond CBN Wheel:

• Bond Type : Resin
• Abrasive : Cubic Boron Nitride (CBN)
• Diameter :   5‑3/4″ (146 mm)
• Bore Sizes : 7/8″ standard
• Abrasive Thickness : 1/8" thick for 1/4 and 325 pitch chains

                                 3/16" thick for 3/8 and 404 pitch chains.

• Supported Chain Pitches :   ¼″, .325″, 3/8″ Lo‑Prof, .404″


🧰 Ideal Applications of CBN Chainsaw Wheel

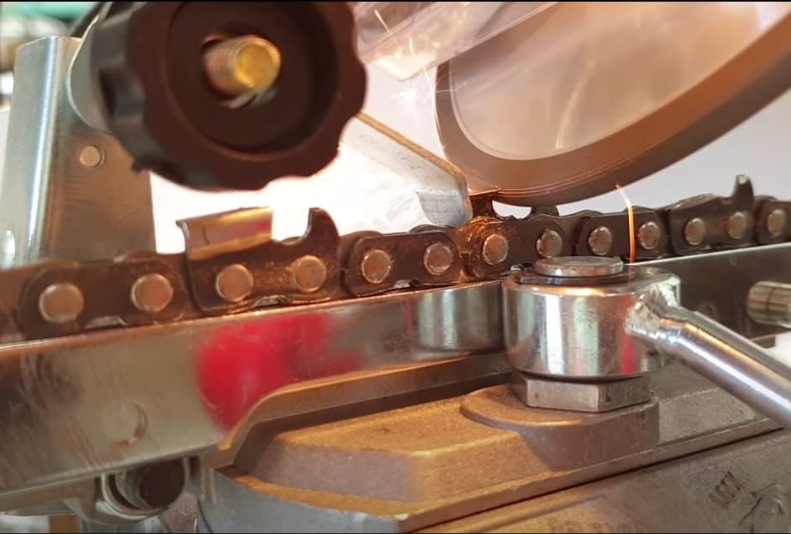

• Chainsaw Tooth Sharpening: Steel chain pitches including 1/4″, .325″, 3/8″ Lo-Prof, and .404″
• Grinding rakers on forestry, harvesting chains

Compatible with a wide range of sharpeners, including Oregon, Stihl, Foley, Jolly, Tecomec, Franzen, Timberline, Maxx, Silvey, Efco, and more

 Why Choose Resin Bond CBN Wheels?

• Controlled Wear & Self‑Sharpening: As the resin wears gradually, fresh CBN particles are continually exposed—maintaining sharpness without needing frequent dressing.

• Consistent Edge Profile: Pre‑shaped to precise radii matching common chain pitches (1/4″, .325, 3/8″ Lo-Prof, .404), these wheels keep accurate geometry—even under heavy use—without needing profile correction.

• Minimal Dust, Cleaner Work Area: Resin‑bond CBN generates significantly less dust than conventional wheels, featuring safer workspace environment and better user experience.

• Longer Life Span & Lower Cost: Far outlasts traditional abrasive wheels; ideal for small batch or multi‑variety industrial use with significantly reduced lifecycle cost.
