CCGT 32.52 (09T308) PCD Diamond Insert | Professional Finishing for Aluminum & Non-Ferrous Metals

$27.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity 2Pic/Box 10Pic/Box

Quantity

Achieve a Mirror Finish in a Single Pass.

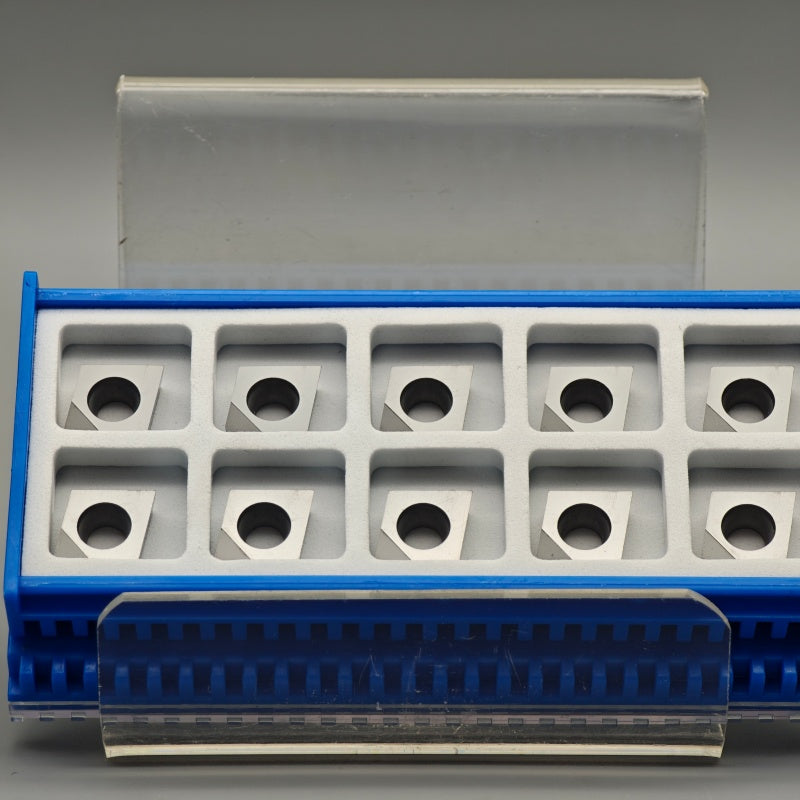

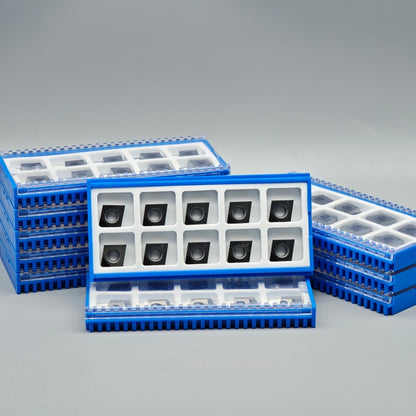

Stop struggling with tool wear on high-silicon aluminum and non-ferrous alloys. Our CCGT 32.52 (09T308) PCD Tipped Inserts are engineered for extreme high-speed finishing. Featuring a premium Polycrystalline Diamond (PCD) edge, these inserts deliver 30-50x longer tool life than standard carbide and provide an exceptional surface finish that often eliminates the need for polishing.

Key Features

Mirror Finish Capability: Precision-ground PCD edges deliver a superior surface finish (low Ra value), often eliminating the need for secondary grinding or polishing.
Extreme Wear Resistance: PCD is second only to natural diamond in hardness. Ideal for High-Silicon Aluminum, Copper, Brass, and Fiber-Reinforced Plastics.
High-Speed Productivity: Optimized for high SFM (Surface Feet per Minute) applications, allowing you to increase spindle speeds and reduce cycle times without sacrificing tool integrity.
Superior Chip Control: The high-positive rake geometry ensures smooth chip evacuation and prevents material buildup (BUE).
Universal ANSI Compatibility: Designed to fit standard SCLCR / SCKCR / SCLCL style boring bars and tool holders.

Technical Specifications

Feature	ANSI Standard	ISO Standard
Model	CCGT 32.52	CCGT 09T308
Abrasive Tip	PCD (Polycrystalline Diamond)	PCD
Inscribed Circle	3/8" (9.525 mm)	3/8"
Thickness	5/32" (3.97 mm)	5/32"
Corner Radius	0.031" (1/32")	0.8 mm
Clearance Angle	7° (Positive)	7°

Application & Parameters

Workpiece Materials: Aluminum Alloys (Low & High Silicon), Copper, Brass, Zinc, Wood, Plastics, Carbon Fiber.
Recommended Speed (Vc): 1,500 - 6,000 ft/min (450 - 1800 m/min).
Depth of Cut (ap): 0.002" - 0.015" (0.05 - 0.4 mm).
Feed Rate (fn): 0.002" - 0.008" ipr (0.05 - 0.2 mm/rev).

Call to Action & Shipping

Bulk Discount: Machine shop owners — Save 10% on orders of 5+ inserts. Professional pricing applied at checkout.
Shipping: Ships from [Your Location] via FedEx/DHL. 24-hour order processing.
Expert Support: Not sure if this PCD grade is right for your material? Contact our technical team for a free consultation.

Search Engine Listing

Page Title: CCGT 32.52 (09T308) PCD Tipped Diamond Insert - 0.031" Radius
Meta Description: Industrial grade CCGT 32.52 PCD inserts for mirror-finish turning. Ideal for high-silicon aluminum and non-ferrous metals. Longest tool life. 100% ANSI compatible. Shop now!
URL Handle: ccgt-32-52-pcd-insert-031-radius-aluminum-finishing

Shipping & Handling

We support global shipping. After your purchase, we will ship within 24 hours and the shipping method will be FedEx or DHL air freight, with fast shipping time.

Environment-Friendly

Our grinding wheels are very environmentally friendly from production to shipment. On the premise of ensuring the rigidity and hardness of the grinding wheel, we have carried out weight reduction treatment on the grinding wheel, which can not only reduce carbon dioxide emissions during transportation, but also save the usage load of your machine and improve its service life.

After-sales Guarantee

We are the source manufacturer of grinding wheels, after the purchase of the goods have any questions or quality problems can contact us at any time to provide 30 days unconditional refund

Note

To avoid situations where it cannot be used normally, please confirm the size again before placing an order to ensure it is suitable. You can consult us anytime for any questions.
